Popliteal Space
Normal Anatomy
Flat, soft hollow behind the knee (popliteal fossa)
Pathological / Affected Anatomy
Fluid-filled swelling (Baker's cyst) protruding posteriorly
Conditions
Baker's Cyst
A Baker's cyst causes swelling and tightness behind the knee. This page covers its association with underlying joint issues, symptoms, and management.
On this page

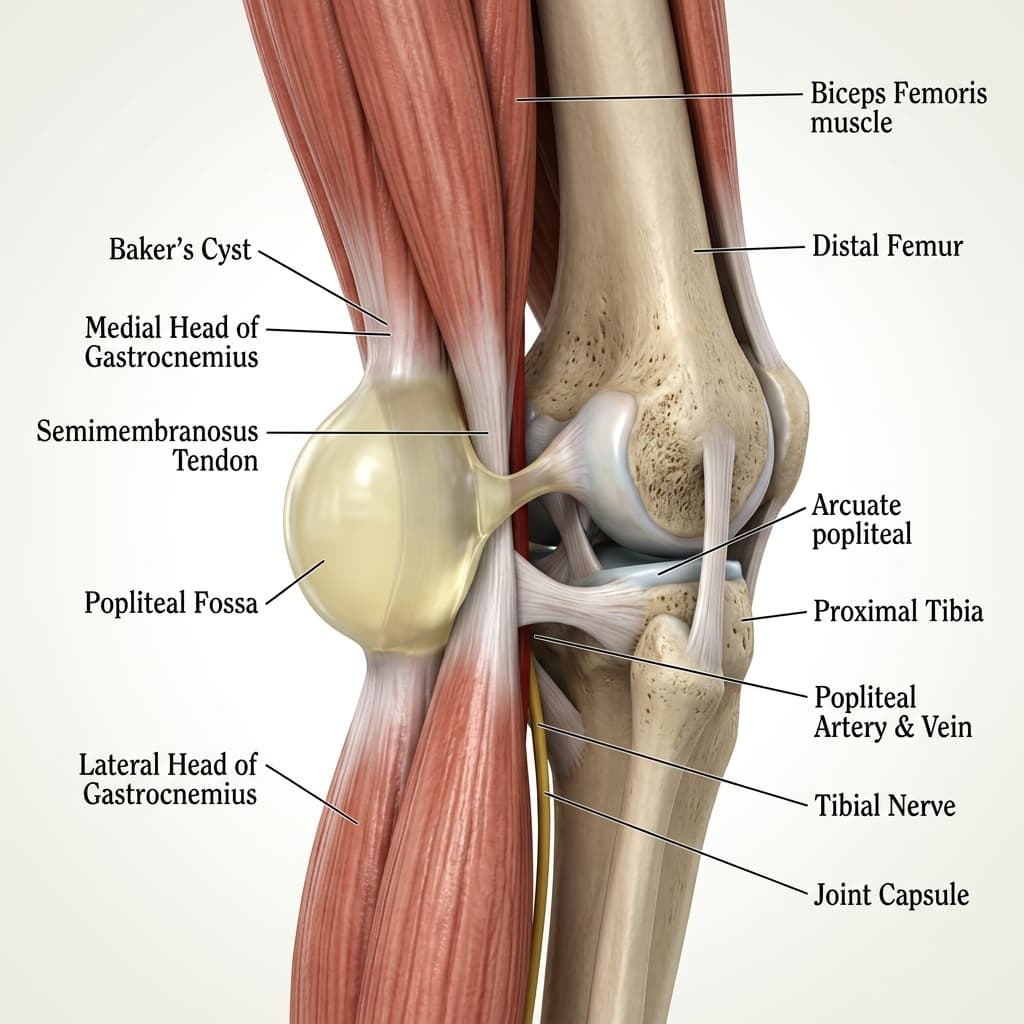

What is Baker's Cyst?
A Baker's cyst is a fluid-filled swelling located in the space behind the knee (the popliteal space). It develops when the joint produces excess synovial fluid in response to intra-articular irritation (such as arthritis or a meniscus tear), which then escapes into a small pocket. Wording is cautious: it is NOT a tumor, and treating the underlying joint cause is essential. Complete cyst removal is rarely indicated.
This information is for general patient education and does not replace an individual clinical assessment.
Anatomical Overview
Anatomy Comparison

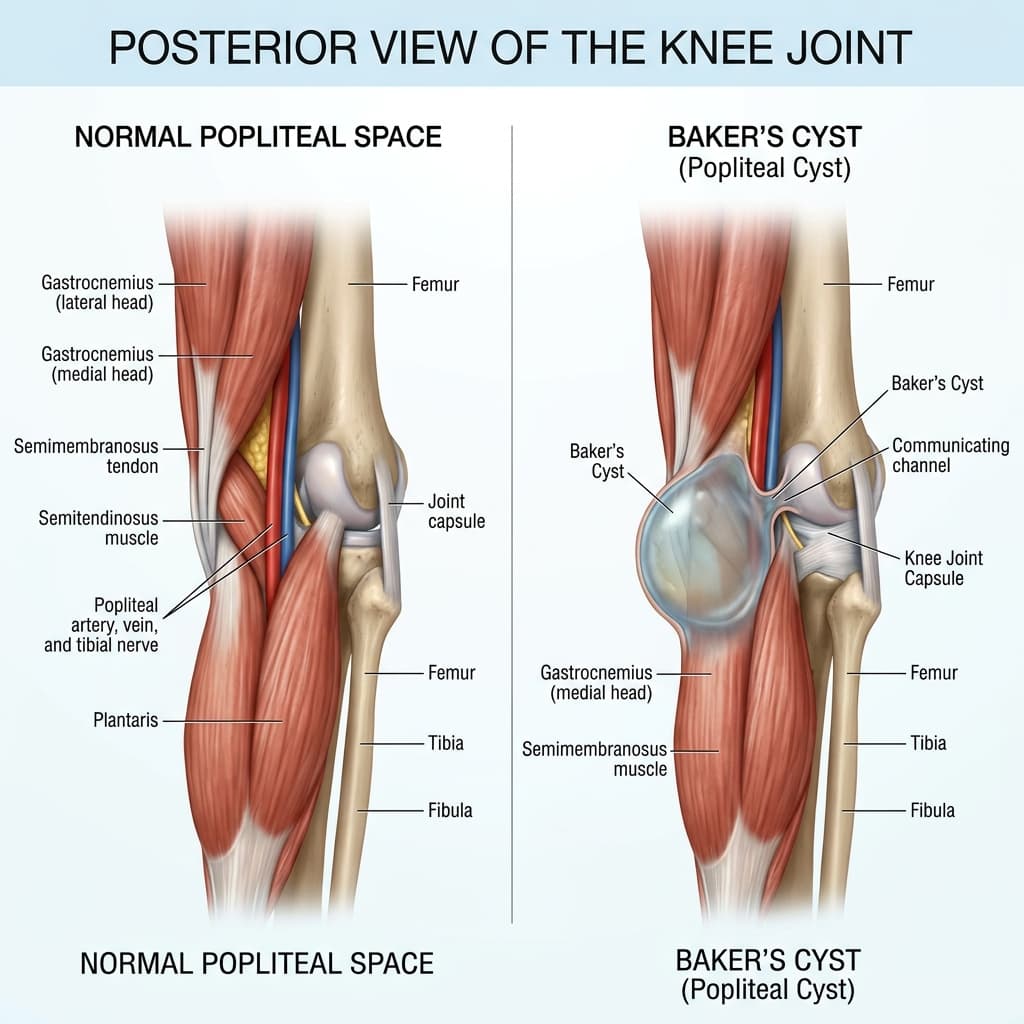

Healthy vs Affected Joint Comparison
Understanding structural differences caused by baker's cyst.
Comparison DiagramClinical ReferenceSynovial Fluid
Normal Anatomy
Normal amount of lubricating fluid inside the joint cavity
Pathological / Affected Anatomy
Excess joint fluid escaping through a one-way valve into popliteal space
| Anatomical Feature | Normal Anatomy | Pathological / Affected Anatomy |
|---|---|---|
| Popliteal Space | Flat, soft hollow behind the knee (popliteal fossa) | Fluid-filled swelling (Baker's cyst) protruding posteriorly |
| Synovial Fluid | Normal amount of lubricating fluid inside the joint cavity | Excess joint fluid escaping through a one-way valve into popliteal space |
Annotated Imaging Example
LKC Imaging Viewer
MRI · Axial MRI
Annotations visibleEducational use only
Annotation Reference
- 1Cyst Fluid Collection
- 2Gastrocnemius–Semimembranosus Bursa
- 3Adjacent Joint Recess
Educational Imaging DisclaimerThis imaging example is provided solely for educational purposes. It is not a diagnostic image and does not represent your own anatomy or pathology. All patients require individual clinical examination, history taking, and appropriate investigations to reach a diagnosis. The findings shown may not be present in your case.
Common symptoms
Symptoms vary, and similar symptoms can occur with other knee conditions. Commonly reported signs include:
Visible or feelable swelling behind the knee joint
Discomfort, tightness, or stiffness, worse with full knee bending
A dull ache behind the knee, particularly after standing
Pain that may radiate into the calf muscle
Causes and associated factors
The development or onset of this condition can be associated with several mechanical, biological, and lifestyle factors, including:
- Chronic joint irritation secondary to knee arthritis
- Intra-articular pathology, such as a degenerative meniscus tear
- Gout or other inflammatory joint conditions causing excess fluid
- Previous knee trauma causing chronic swelling
Urgent symptoms? Read urgent advice.Lincolnshire Knee Clinic does not provide emergency medical care. For life-threatening symptoms call 999. For urgent non-life-threatening advice use NHS 111.
Lincolnshire Knee Clinic does not provide emergency medical care. For life-threatening symptoms call 999. For urgent non-life-threatening advice use NHS 111.
Clinical assessment and diagnosis
A comprehensive clinical assessment is performed to understand the root cause of your symptoms and outline appropriate management options.
- Physical examination of the back of the knee for swelling and warmth
- Assessment of knee joint range of motion and extension blocks
- Evaluation of underlying conditions (osteoarthritis, meniscal signs)
- Review of symptoms that might suggest a ruptured cyst
A diagnosis should not be made from website information alone.
Investigations
Imaging and other investigations may be recommended depending on clinical presentation. Common assessments include:
Ultrasound scan of the popliteal space to confirm the fluid-filled nature of the cyst
Indicated where clinically appropriate following assessment.
MRI scan to identify the underlying internal joint problem
arthritis, meniscus tear
LKC Imaging Console v1.0
Status: clinically approved
Cyst Fluid Collection
Well-defined, fluid-filled popliteal cyst.
Cyst Fluid CollectionPathology
Well-defined, fluid-filled popliteal cyst.
Treatment options
We offer structured, staged treatment pathways, focusing on conservative and non-surgical approaches. Suitability depends on individual assessment.
A
B
Activity modification, compression, and elevation to reduce swelling
Indicated where clinically appropriate.
Explore Treatment >C
D
Physiotherapy to manage joint swelling and preserve range of motion
Indicated where clinically appropriate.
Explore Treatment >Staged Clinical Pathway
Clinical Treatment Staged Pathway
Patient Education Pathway: This pathway diagram is for patient educational purposes only. It is not a diagnostic, triage, or clinical decision-making tool. Individual care options are determined dynamically following consultation.
When might surgery be considered?
Surgical intervention may be discussed when non-operative treatments do not provide sufficient relief, symptoms significantly restrict daily function or quality of life, and clinical and imaging findings correlate.
Treating the underlying cause
e.g., arthroscopy) rather than removing the cyst directl
Choosing the right treatment
Decisions depend on a detailed diagnosis, symptom severity, patient goals, activity expectations, and general health history. We support shared decision-making, ensuring you fully understand the expected benefits, risks, and alternatives of each pathway.
Frequently Asked Questions
No. It is a completely benign, fluid-filled pocket arising from excess joint lubrication fluid.
Rarely. If the underlying cause, like a meniscus tear or arthritis, is not treated, the cyst will likely recur.
Fluid leaks into the calf, causing sudden pain, redness, and swelling that can mimic a Deep Vein Thrombosis (DVT). Urgent review is advised.
A physical examination of the knee and an ultrasound scan are typically used to confirm the diagnosis.
Excessive activity can increase joint fluid and make the cyst tighter, so load modification is recommended.
Highly recommended for insurance; self-paying patients can book directly.
Clinically Reviewed
Mr Ricardo J Pacheco (GMC 4145976)Consultant Trauma & Orthopaedic Surgeon
Last reviewed: 29 July 2026
